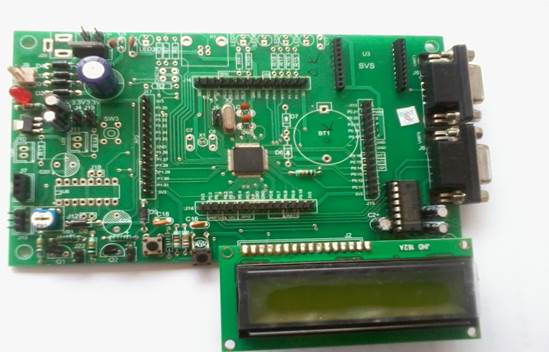

ARM 7 LPC2148 Projects/Development Board

ARM7 Development Board is a powerful platform which comes with a micro controller on-chip memory. These boards are ideal for developing embedded applications like high speed wireless communication, real time data monitoring and control, interactive control panels and USB based data logging. Manufactured from double sided PTC and PCB material, these boards provide extra strength to the connector joints for increased reliability. ARM Seven Development Board can support the operating supply voltage ranging from 9V to 15V and comes with a built-in reverse polarity protection.


ARM7 LPC2148 development board and also projects support board.

  • Microcontroller: LPC2148 with 512K on chip memory
  • Crystal for LPC2148: 12Mhz
  • Crystal for RTC: 32.768KHz
  • 40 pin Berg header for external interfacing
  • Operating Supply: 9V to 15V DC/AC
  • 2.4GHz ZigBee (XBee) wireless module adaptor
  • 512 bytes of I2C external EEPROM
  • USB Type B Connector
  • 2x16 Character Alphanumeric LCD
  • L293D 600mA Dual DC motor Driver
  • Dual RS232 UARTs for external communication
  • Real-Time Clock with Battery Holder
  • 2 Analog Potentiometers connected to ADC
  • Reset and Boot loader switches
  • 3V button cell for on chip RTC
  • ON/OFF switch
  • Buzzer

THIS BOARD SUPPORTS ALL THE COMMUNICATIONS.
THIS BOARD INCLUDES

  • LM35
  • MQ2 GAS
  • FIRE
  • LDR
  • 1-SWITCH
  • 4-LED'S(O/P)
  • 2-UART'S
  • ZIGBEE BOARD.
  • 2-TRANSISTOR O/P
  • 16X2 LCD DISPLAY

And also we will provide the sample source code  For all interfacing
Schematics and Application examples in KEIL provided in the documentation CD
1-LPC2148 Pro Development Board
1-USB Cable
1-DB9 Serial Cable
1-Documentation CD
